Antai Solar | High-Efficiency Solar Mounting Systems & Solutions

Antaisolar's Self-developed Octagonal Torque Tube

Stronger structure, higher material utilization, and up to 30% material cost reduction.
With a multi-slew drive design, the maximum length can reach 143 m.

Patented Dual-spherical Bearing Design

Omni-directional rotation adapts to N-S slopes up to 15%.

Quick-install Bearing Housing

Snap. Flip. Twist.
Improves core component installation efficiency by 25%.

SmartTrail™
Intelligent Control System

Algorithm-driven for higher energy yield.
Four protection modes for extreme weather conditions.
Multi-platform software supports easy remote & on-site O&M.

AT 3.0 Smart Tracking Solution

Efficient, stable and secure

Boost power generation
Mitigate extreme weather risks
Remote or onsite maintance, convenience beyond the platform

More 

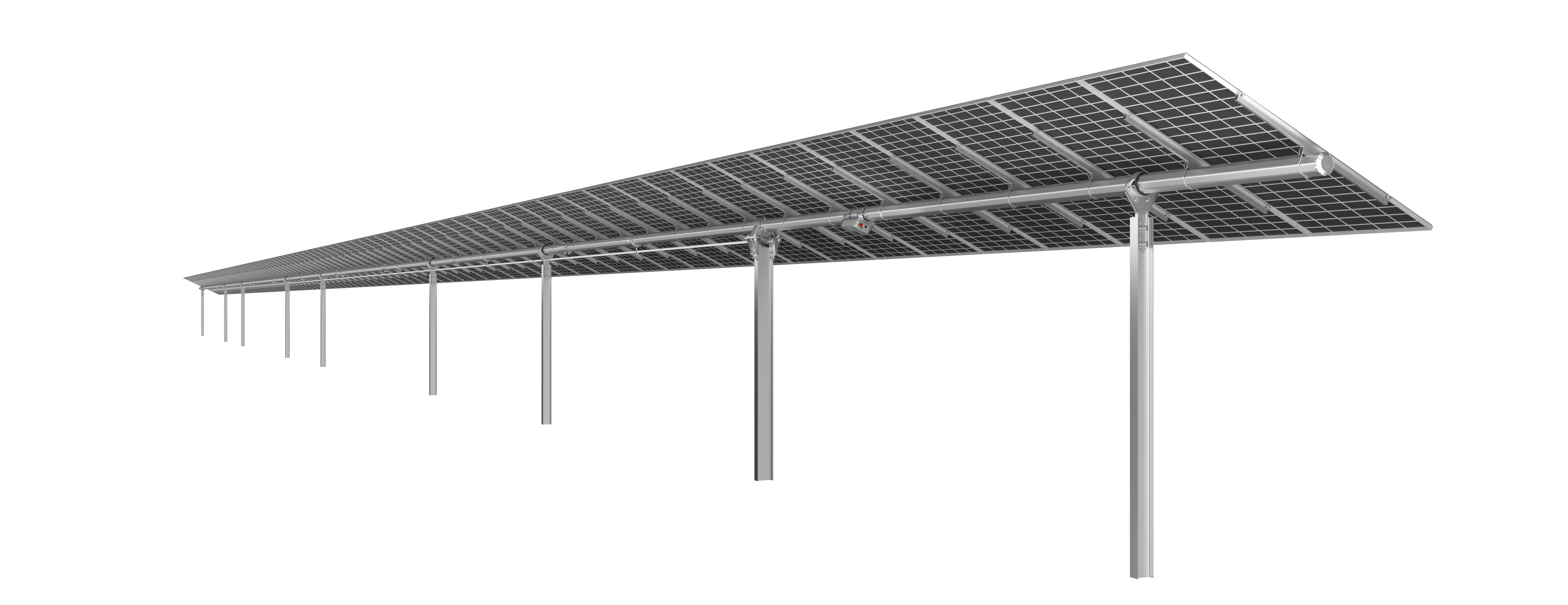

AT-Spark

120 ^°

Tracking range

1-6

Slewing drive

0-5 ^°

Wind stow

15 _%

N-S slope tolerance

Antaisolar

AT-Spark Datasheet

Download 

Light Over Heavy

• Octagonal torque tube design enhances specific stiffness by 40% and specific strength by 50%.

• Multi-point drive solution ensures uniform torsional force distribution along the torque tube. With a maximum length of 143 m, it enables wider span and redduces pile quantity by 20%.

• Low-tilt wind-avoidance design ensures resistance to gale-force winds up to 70 m/s.

Move with the Momentum

• Innovative patented dual-spherical bearing design enables omni-directional rotation and self-adaptation to slopes up to 15%.

• Flip-type bearing housing with snap-fit spherical bearings and quick-positioning structure ensures faster installation and disassembly.

• Component upgrades effectively solve the synchronous shaft sagging issue.

Intelligence for Every Challenge

• Antaisolar’s intelligent tracking algorithm boosts power generation, with four protection modes to mitigate extreme weather risks.

• Multi-platform software system enables efficient deployment, operation, and maintenance.

☉ Mobile App for on-site networking

☉ SCADA Station for on-site O&M

☉ SCADA Remote for remote O&M

• High-performance hardware. Industrial-grade chips and DFMEA-based reliability design ensures long-term stability. IP65 & IK07 protection ratings provide outstanding waterproof, dustproof performance.

• We care about safety. High- and low-voltage separation, combined with multiple electrical protection measures, ensures operational safety. Dual hardware & software encryption protects data and communication security.

Global Reach,
Local Commitment

8Delivery & Service Centers

25 GW Annual Production Capacity

24/7Efficient Support

Comprehensive Lifecycle Services

Financing Services

Antaisolar offers a full suite of financing support, along with installation materials and technical documentation, ensuring a smooth, cost-effective solar project from start to finish.

Pull-out Test & POT Testing

Our comprehensive POT (Power-On Test) services provide a complete testing process, ensuring optimal performance and reliability of the AT-Spark single-axis independent solar tracking systems.

Project Management

With eight service centers around the globe, Antaisolar provides 24/7 rapid response to customer demands, ensuring your solar projects are on track and managed efficiently, regardless of location.

Installation and Commissioning Training

We offer a range of technical consulting and training services, ensuring your team is fully equipped to install and commission our solar tracking systems with ease and precision.

Remote, Onsite, or Hybrid Maintenance

Our advanced monitoring system allows for real-time safety checks and maintenance, ensuring the continuous and safe operation of your solar plant, whether on-site, remotely, or via hybrid solutions.

Extended Warranty & Spare Parts

With our lifecycle warranty and lifetime after-sales support, Antaisolar ensures the long-term reliability of your solar tracking systems, offering peace of mind with spare parts availability and extended coverage.
